Fronto Max. Stylish façade for years to come.


Fronto Max slat panels are a new solution for façades and soffits. The panels are manufactured using Max-3 Technology, which creates a profile that is extremely resistant to mechanical damage and large temperature fluctuations. Fronto Max panels are waterproof and lightweight. They do not require maintenance, and their installation is quick and easy. All that guarantees many years of trouble-free use.

High durability

Thanks to the use of innovative three-layer technology, Fronto Max panels are characterised by high resistance to mechanical damage, previously attainable only by metal sidings, and high resistance to low and high temperatures.

Design possibilities

Fronto Max panels can be installed in two ways – vertically or horizontally. The former gives the wall a modern look and makes it optically higher. The latter, through an elongated arrangement of lines, gives the wall a calm rhythm. We can use the panels on the entire façade or on its selected part. In the latter case, Fronto can be used as a decorative element. Thanks to the universal connection and installation system, we can combine Fronto Max slats with Max-3 flat panels on the façade and ceiling.

Metal-like durability

The base layer of the panel is its core, which gives the product a test-proven durability comparable to metal. Importantly, Fronto Max panels are non-corrosive, much lighter, and easier to work with.

Colours

Inspirations

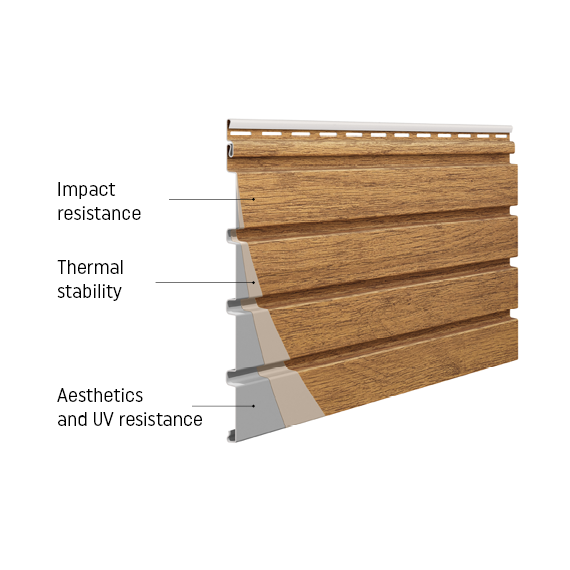

Max-3 Technology

Exceptional durability in extreme conditions



Innovation

Thanks to the three-layer Max-3 Technology, the panels combine high mechanical resistance with the capabilities of the polymer material in terms of shape, colour, and structure.



Temperature resistance

The panels are characterized by reduced linear expansion, which ensures their high resistance to both low and high temperatures.



Metal-like durability

The base layer of the panel is its core, which gives the product a test-proven durability comparable to metal. Importantly, Fronto Max panels are non-corrosive, much lighter, and easier to work with.

Fronto Max

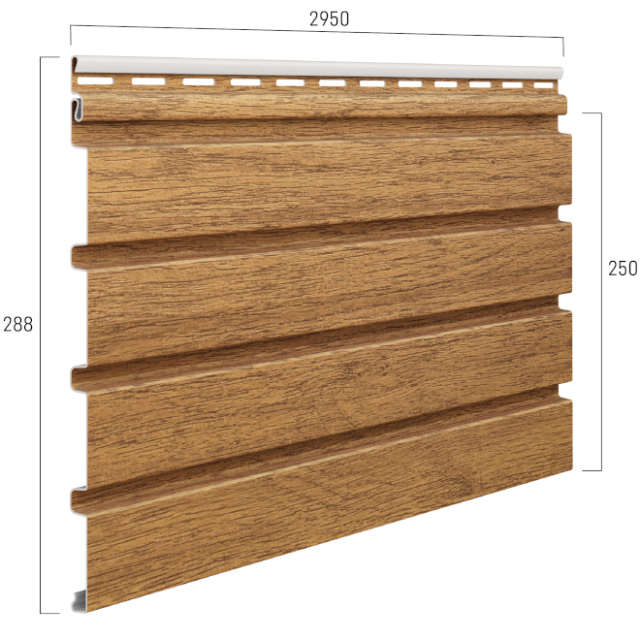

Panel SXP 06
Dimensions

width: 28.8 cm

thickness: 1.3 cm

lenght: 295 cm

Information

usable width: 25 cm
quantity in a package: 10 pcs
number of m2 in a package (usable): 7,375 m2
number of m2 in a package (total): 8.496 m2

Quantity in package

10 pcs

Finishing trims

Accessories

Perforated trim SV 11.5 S

W: 4.2 cm / H: 3.8 cm / L:305 cm

quantity in the package: 10 pcs.

number of lm in the package: 30.5 lm
(horizontal installation)

Accessories

Perforated trim SV 11.5 M

W.: 7.3 cm / H.: 3.8 cm / L.:305 cm

quantity in the package: 10 pcs.

number of lm in the package: 30.5 lm
(vertical installation)

Accessories

Starting trim SV 11

W: 4 cm / L: 305 cm

quantity in the package: 10 pcs.
number of lm in the package: 30,05 lm

Accessories

Outside corner SV(P) 12

W: 7.6 cm / H: 7.6 cm / L: 305 cm

quantity in the package: 5 pcs

number of lm in the package: 15,25 lm

Facades finishing

Outside corner mini SV(P) 12.5

W.: 3.7 cm / H.: 3.7 cm / L.: 305 cm

quantity in the package: 5 pcs.
number of lm in the package: 15,25 lm

Facades finishing

Outside corner for vertical installation SV(P) 12V

W.: 9.5 cm / H. 9.5 cm / L.:305 cm

quantity in the package: 5 pcs.
number of lm in the package: 15,25 lm

Accessories

Finishing trim SV(P) 14

W: 1 cm / H: 2.3 cm / L: 305 cm

quantity in a pack.: 5 pcs
number of lm in a pack.: 15,25 lm

Accessories

J-Trim SV(P) 15

W.: 1.9 cm / H.: 2.2 cm / L.:305 cm

quantity in the package: 10 pcs

number of lm in the package: 30.05 lm

Accessories

Drip edge SV(P) 16.5

W: 2.2 cm / D:1.2 cm / L: 305 cm

quantity in a pack.: 5 pcs
number of lm in a pack.: 15,25 lm

Accessories

Facade flashing small SV 17

W: 7.6 cm / H: 11.5 cm / L: 305 cm

quantity in a pack.: 5 pcs
number of lm in a pack.: 15,25 lm

Accessories

Connector SV(P) 18

W: 4.2 cm / H: 7.6 cm / L:305 cm

quantity in the package: 5 pcs
number of lm in the package: 15,25 lm

Accessories

Facade flashing large SV(P) 19

W: 2.5 cm / H: 25 cm / L: 305 cm

quantity in a pack.: 5 pcs
number of lm in a pack.: 15,25 lm

Installation video

Documents, certificates, installation instructions, catalogues

Technical Data Sheet

Declaration of performance

Guarantee

Fire classyfication

Technical solutions catalog SVP 06

Logistic data

Product catalogue

Fronto Max - 3D Models
