Solvo facade panels

VOX

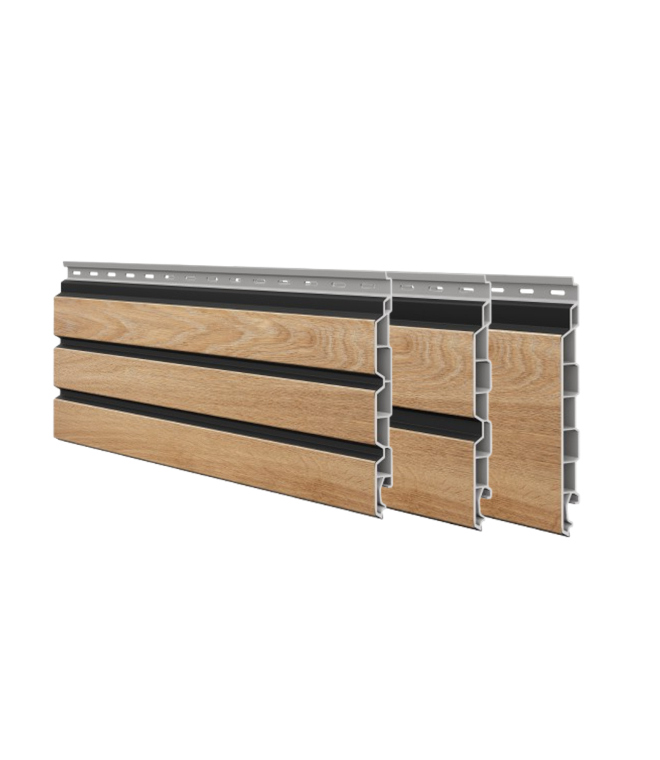

Solvo. Durability and elegance

Solvo are modern hollow panels that are ideal for finishing facades.They are characterised by a lightweight but rigid structure, making their installation quick and easy, and the effect of a beautiful façade is created in a short time.The panels are durable and resistant to temperature fluctuations. They require no maintenance and are easy to keep clean. This guarantees many years of trouble-free use. Solvo panels are made from 100% recyclable raw materials.

Well thought out shape

The panels are available in 3 shapes, which differ in the width of the slats. Their refined shape ensures precise panel connections and translates into an elegant appearance of the façade on the wall.


Quick installation

The chambered design ensures that the panels are lightweight and rigid, which greatly simplifies the installation process, and a set of two-piece trims adds to the convenience.


Arrangement opportunities

The panel shapes can be combined and installed both vertically and horizontally, which, in combination with four interesting wood-like decors, allows for various aesthetic effects on the facade. The choice of panel orientation — vertical or horizontal — can significantly change the perception of the building.  A deeper chiaroscuro effect will be achieved with a black joint, while a solid colour will provide a modern look, emphasising the simplicity of the form.

SMART SOLUTIONS


MOUNTING HOLES

Pre-drilled holes pre-drilled mounting holes

allow fast and easy and easy installation.

ELEGANT
SHAPE

The harmonious shapes of the panels,

from the edges to the depth of the joints,

emphasize their elegant design.



CHAMBERED
PANEL CONSTRUCTION


The chambered structure of the panels

makes them exceptionally strong and stable,

yet relatively lightweight.


FOILED SURFACE


The surface is covered with high-quality foils

with a fine brushed wood texture.

Colours

Inspirations

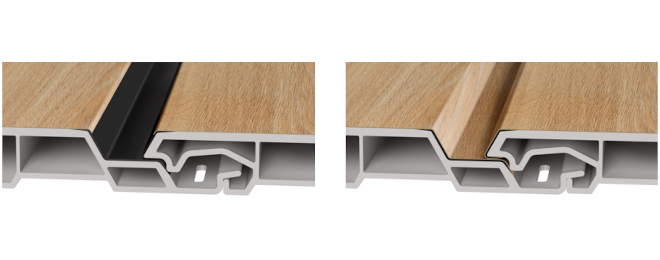

3D effect


There are two versions of the panels and each enables different visual effects. Both give the façade a three-dimensional appearance, allowing light and shadow to play on the surface. However, the version with black grooves further enhances the three-dimensional effect by giving the façade additional depth.

Solvo

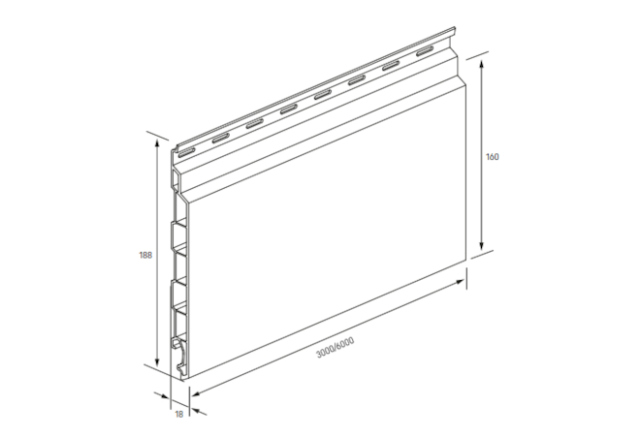

Panel SO-01
Dimensions

width: 18.7 cm

thickness: 1.8 cm

lenght: 300 / 600 cm

Information

type: single hollow panel
usable width: 16 cm
number of m2 per package (usable): 1,92 m2
number of m2 per package (total): 2,244 m2


quantity per package

4 pcs. (3 m)
2 pcs. (6 m)

Finishing trims

Accessories

Starting trim FS-211

W: 3.5 cm / D: 1.3 cm / L: 300 cm

quantity in the package: 1 pc
number of lm in the package: 3 lm

Accessories

Perforated trim FS-261

W: 3.5 cm / D:1.2 cm / L:300 cm

quantity in the package: 1 pc
number of lm in the package: 3 lm

Accessories

Upper ventilation trim FS-262

W : 5 cm / D :1.9 cm / L : 300 cm

(two-part)
quantity in the package: 1 pc
number of lm in the package: 3 lm

Accessories

Universal trim U FS-251

W: 3.5 cm / D: 1.2 cm / L: 300 cm

(two-part)
quantity in the package: 1 pc
number of lm in the package: 3 lm

Accessories

Top egde trim FS-252

W: 5 cm / D: 4.7 cm / L: 300 cm

(two-part)
quantity in the package: 1 pc
number of lm in the package: 3 lm

Accessories

Center joint trim FS-282

W:6 cm / D: 2.1 cm / L:300 cm

(two-part)

quantity in the package: 1 pc
number of lm in the package: 3 lm

Facades finishing trims

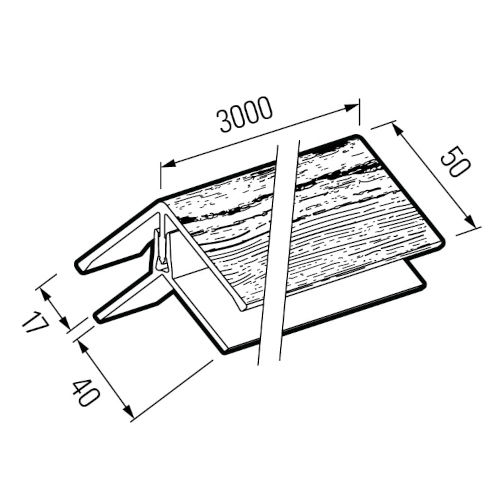

Outside corner FS-222

W: 50 cm / D: 4 cm / L: 300 cm

(two-part)

quantity in the package: 1 pc
number of lm in the package: 3 lm

Accessories

Bottom ventilation trim SV 11.5

W: 4.4 cm / D:4 cm / L:305 cm

quantity in the package: 10 pcs.
number of lm in the package: 30.5 lm
